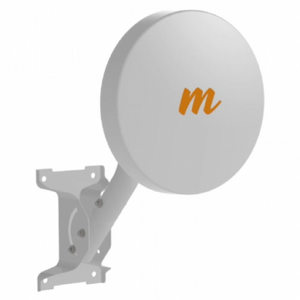

Mimosa 5 GHz 1 Gbps Wireless Bridge, Connectorized, B5c


Sorry but this item is currently unavailable.

Please check back at a later stage.

Current Stock:
Out of stock

Free shipping with

Freight Shipping Only

Product Features
Tech Specs
Product Videos
  • Product Description

    Mimosa B5c 5Ghz PTP Radio:

    The B5c Backhaul is changing the game. Leveraging 802.11ac, 4x4:4 MIMO and radical engineering for service providers that demand the same capacity, speed and reliability as fiber. With 1.7 Gbps PHY and a unique spin on reliability, the B5c is re-defining gigabit wireless technology. The B5c is capable of 1 Gbps throughput and a low 2 ms latency. The B5c can be paired with any dual-polarized antenna and is operational from 4900-6000 MHz*. The B5c brings with it an entirely new set of features never seen before in the outdoor wireless market.


    What we like about the B5c

    • If one channel experiences interference the radio maintains connection while simultaneously searching for new replacement channel.

    • The Mimosa B5 offers constant spectrum analysis with historical and real-time data to dynamically make smarter decisions dynamically.

    • The Auto Everything feature will automatically adjust frequency, channel width and power levels based on environmental feedback.

    • The B5 is the lightest gigabit-integrated backhaul in the industry, and features a quick-mount bracket to eliminate installation frustration.

    • Outdoor IP67 rating, extended temperature operation and fully-integrated lightning ESD protection make the B5 ultra-tough.

    • A dedicated management 2.4 GHz Wi-Fi radio lets your smartphone easily configure the B5 from the bottom of the tower. Smart GPS-assisted aiming technology triangulates your link's goal signal strength for fine tuning.

    Product Downloads

  • Customer Reviews

    • Mimosa Installation Out of the Box
      This 3+ minute module discusses the Installation steps and aim...
    • Install POE & Gland Installation
      This 90-second module discusses the Installation steps of the ...

    Mimosa Installation Out of the Box

  • Tech Specs

    WM #: 112513309
    Security: 128-bit AES PSK with hardware acceleration
    Gain: 1
    Item Type: Outdoor Unit (ODU)
    Height: 10
    Width: 6
    Length: 3
    Operating Tempature: -40Ì´åÁC to +55Ì´åÁC (-40Ì´åÁF to 131Ì´åÁF)
    Power Consumption: 20W
    Mount Method: Pole Mount
    Outdoor Use: Yes
    Frequency: 4900-6000 MHz restricted by country of operation (U-NII 2 US FCC certification pending)
    Network Connector: 10/100/1000-BASE-T
    Max Throughput (Mbps): 1000+ Mbps
    Enclosure: Outdoor UV stabilized plastic Aluminum mounting panel
    POE Description: 56 V Power over Ethernet supply with IEC61000-4-5 surge protection
    QOS: Supports 4 pre-configured QoS levels
    Modulation: 4x4:4 MIMO OFDM up to 256QAM
    Radio Power Max: 30 dBm (2-stream), 27 dBm (4-stream)
    datasheet: Mimosa, B5c, Datasheet: https://www.mimosa.co/uploads/docs/Mimosa-B5c-Datasheet.pdf
